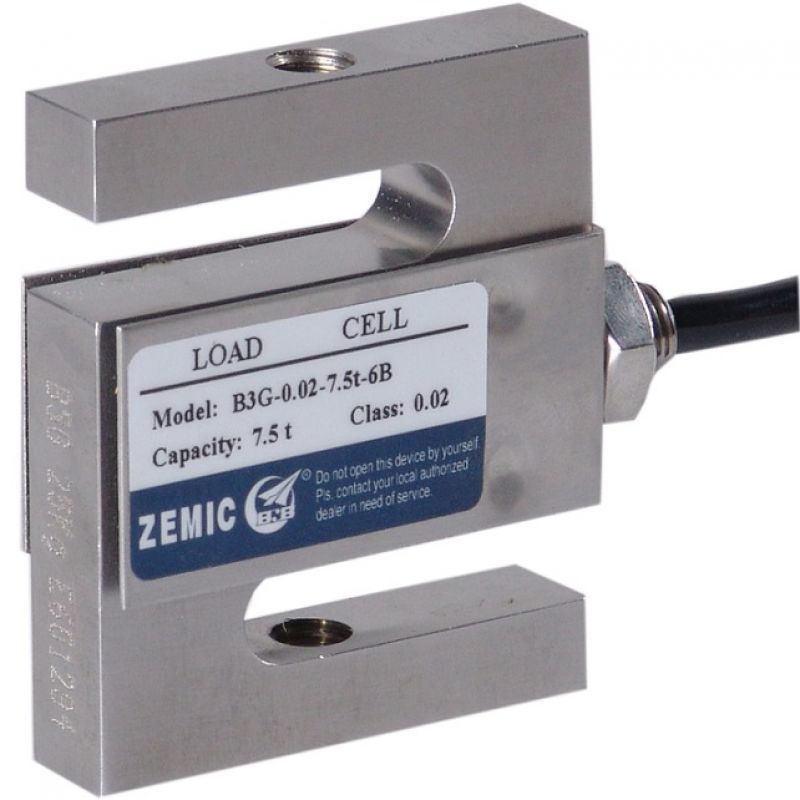

◆B3G load cells are available in the capacities 50kg to 10t
and 50lb to 20Klb.
◆Stainless steel,sealed by adhesive inside, oil proof, water
proof and anti-corrosion,suitable for all kinds of environments.
◆S beam design, tension and/or compression loading possible,
easy installation,suitable for crane scale,mechanical conversion
scale,hopper scales and other electronic weighing devices.
◆Safe and anti-explosive product,can be used in
atrocious environment and hazardous areas. | Features◆Capacities:50kg to 10t; 50lb to 20Klb.
◆High accuracy.
◆Strainless steel construction.
◆Low profile
|
Specifications| Capacity | t | 0.05/0.1/0.25/0.5/1/2.5/5/7.5/10 | lb | 50/75/100/150/200/250/300/500/750/1K/1.5K/2K/2.5K/3K/5K//10K/15K/20K | Accuracy |
| C2 | C3 | C4 | A5S | A5M | B10S | B10M | | Approval |
|
| OIML
R60 C3 |
| III 5000
single | III 5000
Multiford | III L10000
single | III L1000
Multiford | Maximum number
of verification
intervals | n max | 2000 | 3000 | 4000 | 5000 | 5000 | 10000 | 10000 | Minimum load
cell verification
interval | v min | Emax
/5000 | Emax
/10000 | Emax
/14000 | Emax
/15000 | Emax
/15000 | Emax
/10000 | Emax
/10000 | Combined error | %FS | ≤±0.030 | ≤±0.020 | ≤±0.018 | ≤±0.018 | ≤±0.026 | ≤±0.035 | ≤±0.050 | Creep | %FS/30min | ≤±0.024 | ≤±0.016 | ≤±0.012 | ≤±0.012 | ≤±0.017 | ≤±0.030 | ≤±0.040 | Temperature
effect
on sensitivity | %FS/10℃ | ≤±0.017 | ≤±0.011 | ≤±0.009 | ≤±0.009 | ≤±0.013 | ≤±0.030 | ≤±0.040 | Temperature
effect
on zero | %FS/10℃ | ≤±0.023 | ≤±0.015 | ≤±0.010 | ≤±0.010 | ≤±0.014 | ≤±0.030 | ≤±0.020 | Output
sensitivity | mv/v | 3.0±0.008 | Input resistance | Ω | 430±60 | Output
resistance | Ω | 351±2 | Insulation
resistance | MΩ | ≥ 5000(50VDC) | Zero balance | %FS | 1.0 | Temperature,
compensated | ℃ | -10～+40 | Temperature,
operating | ℃ | -35～+65 | Excitation,
Recommended | V | 5～12(DC) | Excitation,Max | V | 18(DC) | Safe overload | %FS | 150 | Ultimate overload | %FS | 300 |
Outline Dimension mm(inch)
Capacity | L | H | W1 | W | M | H1 | 50㎏,100㎏ | 50.8(2.0) | 60.96(2.4) | 11.68(0.46) | 15.06(0.59) | M8 |
8.89(0.35)
| 50lb～300lb | 1/4-28UNF | 250㎏,500㎏ | 50.8(2.0) | 60.96(2.4) | 18.03(0.71) | 21.4(0.84) | M12 | 500lb～1.5Klb | 1/2-20UNF | 1t | 50.8(2.0) | 60.96(2.4) | 24.38(0.96) | 27.76(1.09) | M12 | 2,2.5Klb | 1/2-20UNF | 2.5t | 76.2(3.0) | 99.06(3.9) | 24.38(0.96) | 27.76(1.09) | M20×1.5 | 13.97(0.55) | 3Klb | 1/2-20UNF | 5klb | 3/4-16UNF | 5t | 74.68(2.94) | 99.06(3.9) | 30.74(1.21) | 34.12(1.34) | M20×1.5 | 18.37(0.72) | 10Klb | 3/4-16UNF | 15.75(0.62) | 7.5t | 87.38(3.44) | 139.7(5.5) | 37.08(1.46) | 40.46(1.59) | M24×2 | 27.5(1.08) | 15Klb | 1-14UNS | 10t | 112.78(4.44) | 177.8(7.0) | 42.93(1.69) | 46.31(1.82) | M30×2 | 39.9(1.57) | 20Klb | 5/4-12UNF |
More detailed information about B3G |
